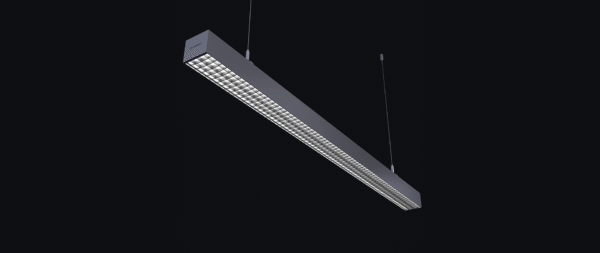

Light UP Direct-Indirect(W-70mm)

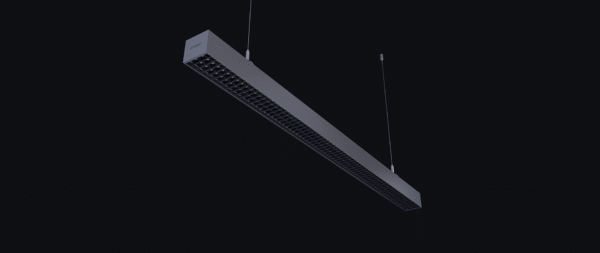

Light UP Direct-Indirect(W-70mm) - Image 2

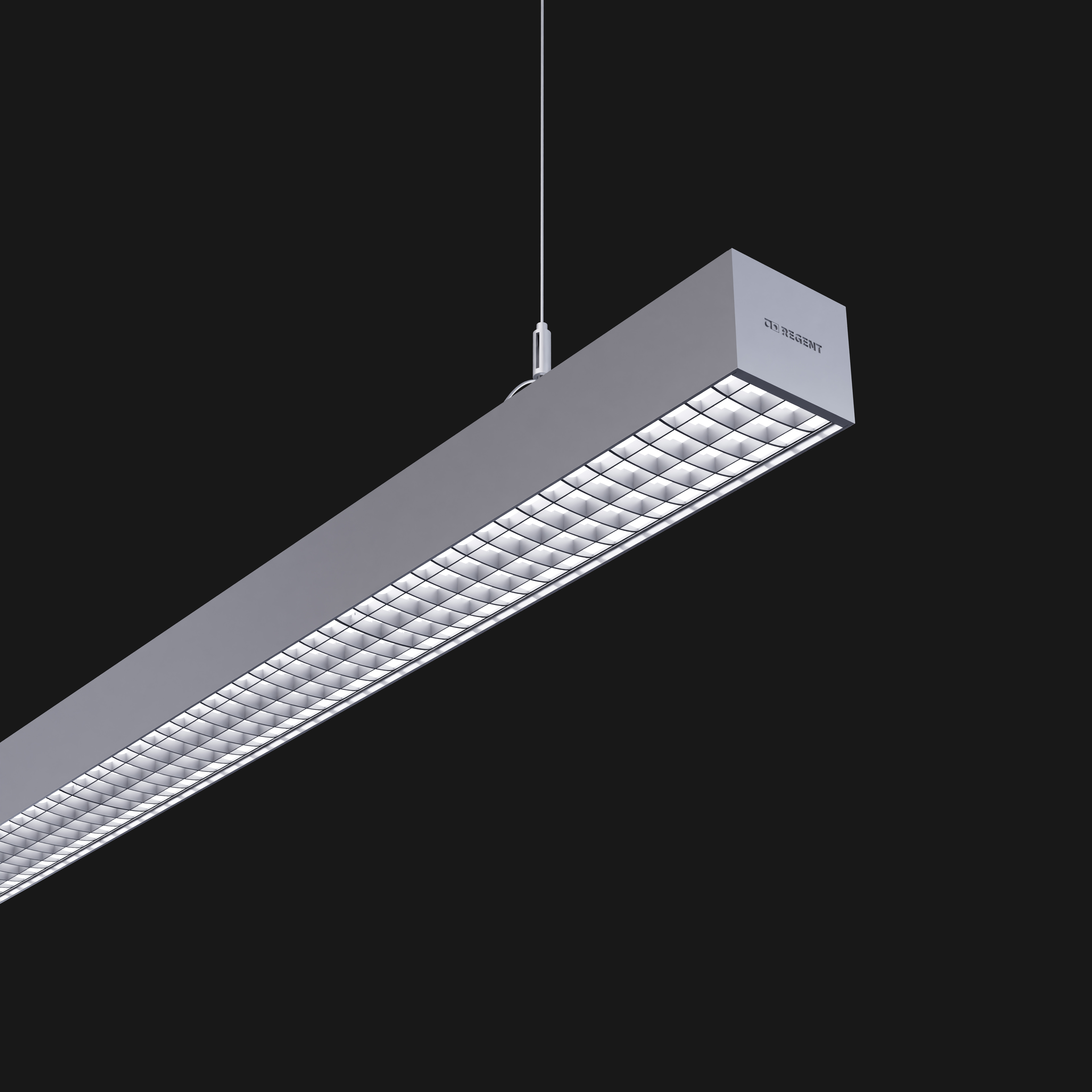

Light UP Direct-Indirect(W-70mm) - Image 3
Light UP Direct-Indirect(W-70mm) - Image 4

Light UP Direct-Indirect(W-70mm)

₹13,500.00 – ₹25,200.00 Price excluding GST

-
+
Add to quote
SKU: Pendant/Surface mount luminaire with HPE (High Performance Efficiency) LED (Light Emitting Diode) Colour temperature of 5700/4000/3000 K, CRI > 80, 230 V constant current driver, 70 % of luminous flux after 50,000 operating hours, Energy efficient LEDs, Direct-Indirect light emission, Luminaire profile in aluminium, Polyester powder White/Black coloured coat applied over a 5- stage pre-treatment, snapfit lenses & raster type diffuser for a homogenous light distribution to acheive a glare rating of UGR<16, ZHLS (ZERO HALOGEN LOW SMOKE) internal wiring, Sliding fixing wire suspension. Protection class I, IP 40, suitable for temperatures of -10deg to +50deg, MacAdam 3, T.H.D ≤ 10%, driver efficiency ≥ 88%, surge protection of 2.5 kV, with luminous intensity of 120lm/w Light Throw: Direct-Indirect light emission Optics: snapfit lenses & raster type diffuser with UGR<16 Finish: White/Black Control Gear: Electronic Control Protection W = 68 mm, H = 60 mm, PL max = 1500 mm. Category:

Pendant/Surface mount luminaire with HPE (High Performance Efficiency) LED (Light Emitting Diode) Colour temperature of 5700/4000/3000 K, CRI > 80, 230 V constant current driver, 70 % of luminous flux after 50,000 operating hours, Energy efficient LEDs, Direct-Indirect light emission, Luminaire profile in aluminium, Polyester powder White/Black coloured coat applied over a 5- stage pre-treatment, snapfit lenses & raster type diffuser for a homogenous light distribution to acheive a glare rating of UGR<16, ZHLS (ZERO HALOGEN LOW SMOKE) internal wiring, Sliding fixing wire suspension. Protection class I, IP 40, suitable for temperatures of -10deg to +50deg, MacAdam 3, T.H.D ≤ 10%, driver efficiency ≥ 88%, surge protection of 2.5 kV, with luminous intensity of 120lm/w

Light Throw: Direct-Indirect light emission
Optics: snapfit lenses & raster type diffuser with UGR<16
Finish: White/Black Control Gear: Electronic Control Protection
W = 68 mm, H = 60 mm, PL max = 1500 mm.

Variant

Light up-down – 18W:9U-9D (L-1186mm), Light up-down – 22W:11U-11D (L-1186mm), Light up-down – 24W:12U-12D (L-1000mm), Light up-down – 24W:12U-12D (L-1000mm) – DALI, Light up-down – 36W:18U-18D (L-1186mm), Light up-down – 36W:18U-18D (L-2366mm), Light up-down – 44W:22U-22D (L-2366mm), Light up-down – 72W:36U-36D (L-2366mm)
